The principle of Oil Free Scroll Compressor

The oil-free scroll air compressor and the orbiting scroll maintain a small radius of plane motion in a certain phase, and the dynamic and fixed scrolls mesh to form a plurality of crescent-shaped closed compression chambers, and the gas sucked into the working chamber is subsequently formed into a crescent.

The compression chamber of the shape is gradually compressed, and then the exhaust port at the center of the stationary plate is discharged.

The Advantages of Oil Free Scroll Compressor compare with Oil Free Screw Compressor

The features:



Low noise and convenience

The low noise of 10~65dB operation can be used in hospitals and offices without additional placement. Using the chart LCD controller, you can view the multi-function icons such as working status, machine protection, maintenance information, and output status in any state for easy operation.

Multi-model selection

With the ability to manufacture 5HP~50HP oil-free scroll air compressor, it can provide the best solution according to customer needs.

Durability

The scroll mainframe has a simple structure, fewer parts, fewer wearing parts, greatly reduces the possibility of parts replacement, and has high durability. Robust structural design High quality air supply capability improves reliability.

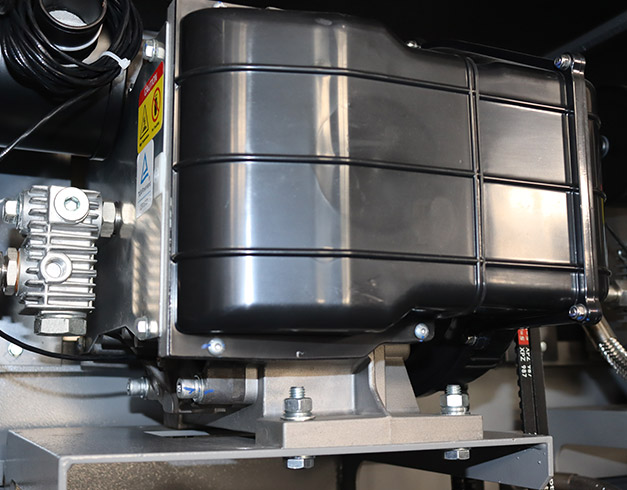

High efficiency scroll host

The vortex mainframe uses the best LAP/GAP design and uses ultra-precision machining of a dedicated vortex machine to ensure the highest level of compression efficiency.

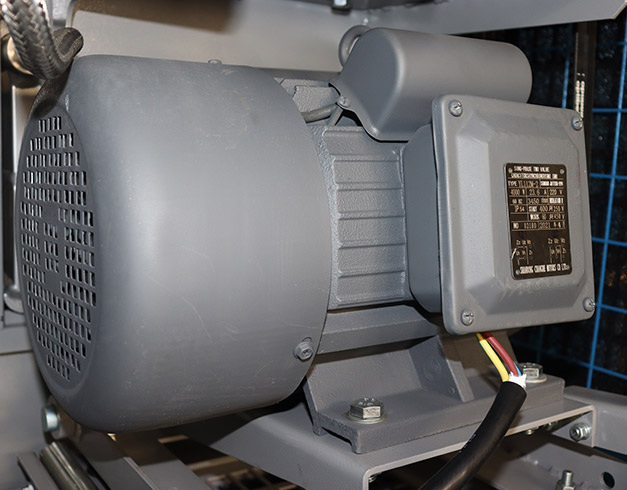

Save operating costs Models above 10HP use serial/random number generator control to minimize power costs (up to 20,000) and low maintenance costs.

Reliability

-The vortex design optimizes He Chao precision machining to ensure high efficiency.

-The vortex machine is specially machined for special surface treatment to ensure high durability.

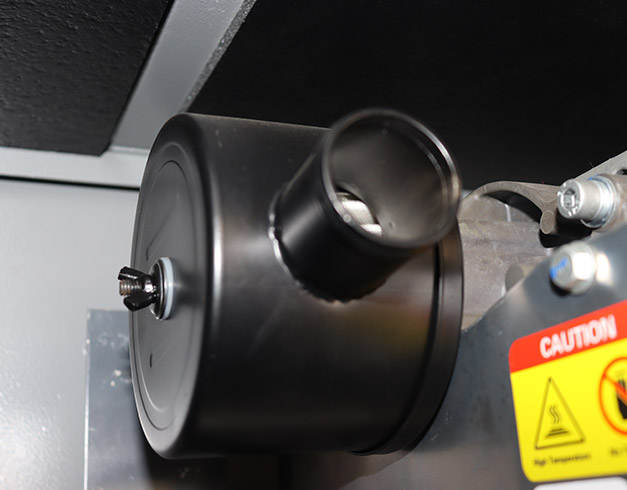

- An air filter with a high filter effect prevents unclean impurities from entering the main unit and causing wear.

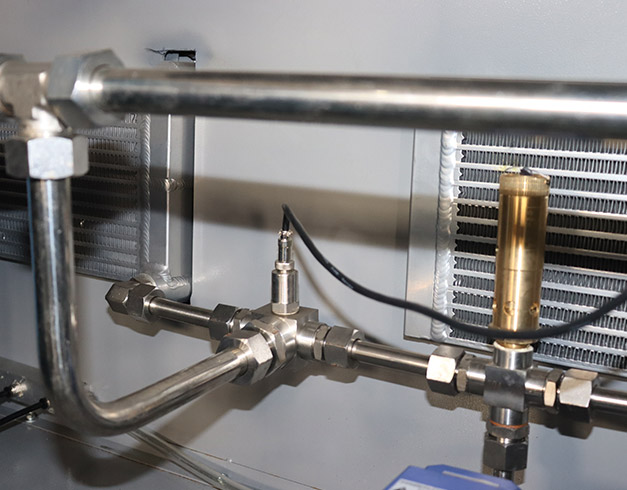

-The cooling fan with excellent cooling performance can be used stably under high temperature operation.

-The end face sealing strip cast by special material has excellent lubrication effect and wear resistance.

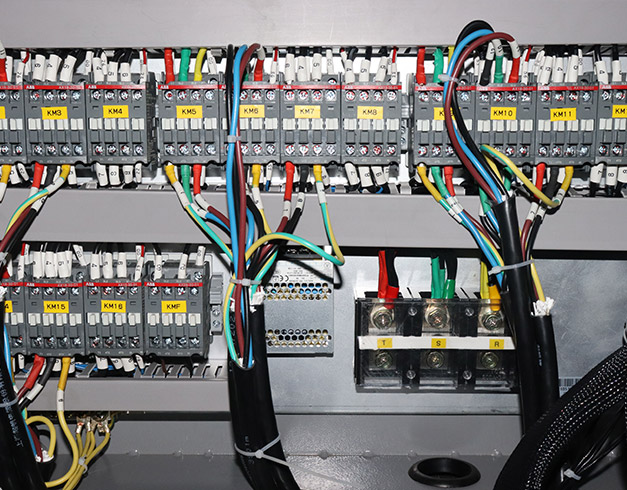

MICOM controller

The installation graphic shows that the MICOS-III controller of the LCD can use the Multi-language interface. The multi-function icons such as the working status of the air compressor, machine protection, maintenance information, and output status are easy to display.

Energy-saving

Different compression controls are formed according to the actual gas consumption of the plant operation, and the control is started/stopped in order to prevent power consumption caused by the idle load operation.

low noise

It adopts low-noise and low-vibration scroll compression mode and low-noise machine structure based on noise/vibration analysis, and quiet and safe operation with the same level of minimum noise.

High quality and efficient accessories

It adopts special sealed scroll and special-purpose cast end seals, high-efficiency filters, etc., with less wearing parts, long replacement cycle and low maintenance cost.

Application of Oil Free Scroll Compressor

Oil-free air is used in all kinds of industries where air quality is paramount for the production process and end product.

These applications include:

  • 1. Food and beverage processing

    Delivering the food&beverrage with oil free scroll compressor

  • 2. Pharmaceutical industry (manufacturing and packaging)

    Oil free scroll compressot reinforce the greater product purity. More clean processes,less waste water and increased safety.

  • 3.Automative

    For high quality painting, smooth running automated,processes with better healty protection.

  • 4.Electronic Industry

    Aim for smooth-running control system and more ultra-clean environment to keep high

    Product quality

  • 5.Oil&Gas

    Increase safety smooth-running process system and higher product quality

  • 6.Textile

    The oil free scroll compressor for the more efficient production,reduces the repair and maintenance costs. Improve the quality of products, less waste water

    Contamination by even the smallest quantities of oil can result in costly production downtime and product spoilage, making class 0 an industry standard.

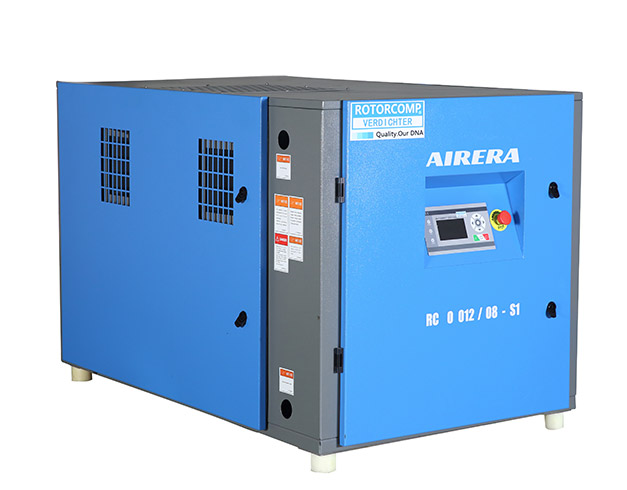

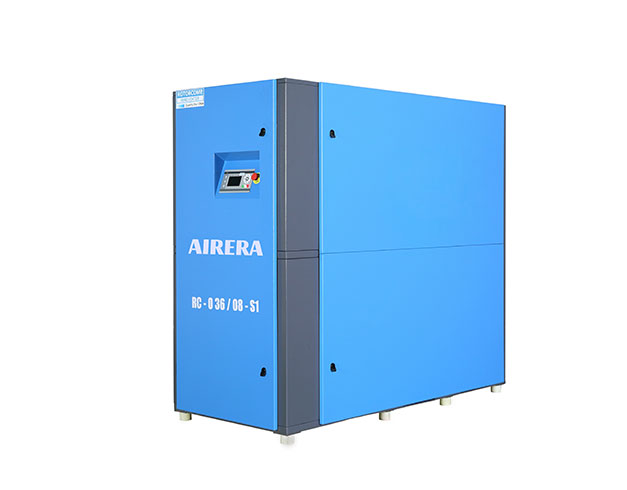

Model Capacity (m³/min) Power (kW) Inlet/Outlet Noise Level Dimension Weight
8bar Motor dB(A) L×W×H in mm kg
RC-D04/08-S1 0.4 3.7 3/8 55 720×760×1150 220
RC-D06/08-S1 0.6 5.5 3/8 60 720×760×1150 240
RC-D08/08-S1 0.8 7.5 1/2 62 780×790×1250 290
RC-D12/08-S1 1.2 11 1/2 65 1250×760×1090 440
RC-D18/08-S1 1.8 16.5 3/4 68 1250×760×1560 630
RC-D24/08-S1 2.4 22 1 70 1250×1360×1090 820
RC-D30/08-S1 3 27.5 1-1/2 72 1250×1360×1560 1010
RC-D30/08-S1 3.6 33 1-1/2 75 1250×1360×1560 1200

Note:

The above parameters and colors are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;

Our oil-free scroll compressor can be designed and configured according to your specific needs, such as air-cooling / water-cooling method, oil content, weight and dimension;

Frequency converter (optional);

1-year compressor warranty, 2-year air end warranty;
