AIRERA Low-pressure Screw Air Compressors

Send Email Inquiry Now

WHY TO USE AIRERA Low-pressure Screw Air Compressors

AIRERA issued the New edition low-pressure air compressors as the new member of our Compressed Air Systems.

we carry a full line of durable and reliable air compressors for virtually every application.

Many industries that require low pressure air still use screw air compressors with a pressure range of 0.3-0.5 MPa, to save significant amount of electricity by using pressure reducing valves to meet the requirements of compressed air usage.

In response to the call for energy conservation and emission reduction.

AIRERA developed low pressure screw air compresso based on market demand.

The applications of the low-air-pressure compressors

Cement manufacturers: Cement manufacturing plants require air compressors releasing low pressure for various applications, including mixing and conveying materials and cleaning and sealing cement bags.

Treatment of wastewater: Low-pressure air compressors assist in aeration to supply the processing bacteria with oxygen and agitation to maintain solids in suspension.

Mills: Pulp and paper mills require low-pressure air compressors to supply a continuous flow of clean, dry air and help maintain a near-constant production rate.

Glass: The glass industry uses air compressors producing low pressure to assist in glass liquid combustion and conveying the mix from one chamber to the other.

Mining: Low air pressure helps in the safe handling of fine materials such as coal dust.

Fermentation: Low-pressure air compressors help increase oxygen which helps bacteria complete the fermentation process.

Pneumatic conveying: Low-air pressure compressors provide a combination of pressure that transfers materials across different processing centers in pneumatic conveying.

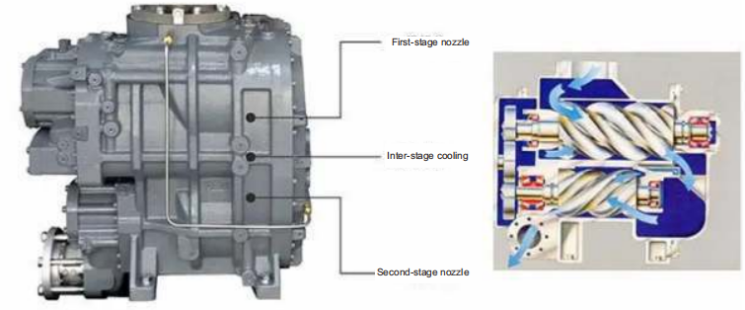

产品2 部件图

Features of low pressure screw air compressor

High performance is guaranteed by using large rotors and low speeds in the machine.
The cooling area of the oil cooler has been increased by over 30%, ensuring that it can maintain normal operation without overheating during the summer.
The internal design of the machine was independently developed, optimizing the input-to-power ratio.

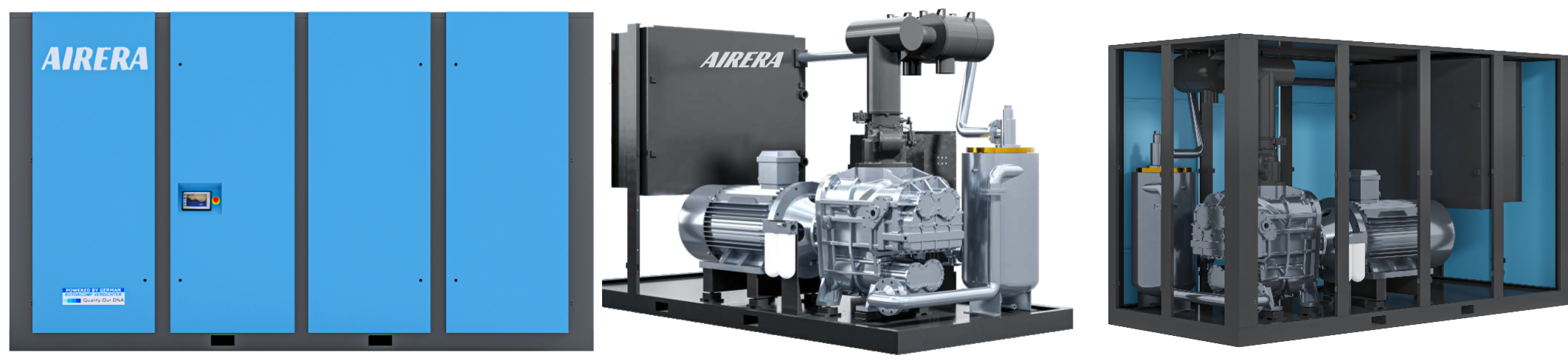

cp2 拼图

Model	F.A.D.		Working Pressure		Rated Power		Air Outlet	Weight	Dimensions
	m3/min	cfm	bar	psig	kW	HP		kg	L×W×H (mm)
AGCD-30/4.0-C-G	6.98	246	4.0	58	30	40	DN50	2100	2000×1450×1650
AGCD-37/4.0-C-G	9.41	332	4.0	58	37	50	DN50	2150	2000×1450×1650
AGCD-45/4.0-C-G	11.43	403	4.0	58	45	60	DN65	2350	2200×1450×1650
AGCD-55/4.0-C-G	14.32	505	4.0	58	55	75	DN65	3500	2420×1530×1720
AGCD-75/4.0-C-G	19.20	678	4.0	58	75	100	DN65	3750	2420×1530×1720
AGCD-90/4.0-C-G	22.54	796	4.0	58	90	120	DN80	3800	2800×1700×1950
AGCD-110/4.0-C-G	27.57	973	4.0	58	110	150	DN80	4200	2820×1730×2100
AGCD-132/4.0-C-G	32.50	1147	4.0	58	132	180	DN100	5000	2820×1730×2100
AGCD-160/4.0-C-G	44.07	1556	4.0	58	160	215	DN100	5900	3450×2000×2050
AGCD-185/4.0-C-G	50.50	1783	4.0	58	185	250	DN150	6850	3800×2250×2350
AGCD-200/4.0-C-G	56.00	1977	4.0	58	200	265	DN150	7800	3800×2250×2350
AGCD-220/4.0-C-G	59.94	2116	4.0	58	220	300	DN150	8000	3800×2250×2350
AGCD-250/4.0-C-G	64.20	2266	4.0	58	250	335	DN150	8250	3800×2250×2350
AGCD-280/4.0-C-G	75.43	2663	4.0	58	280	475	DN200	8900	4200×2250×2350
AGCD-315/4.0-C-G	78.05	2755	4.0	58	315	420	DN200	10400	5000×2250×2350
AGCD-355/4.0-C-G	88.02	3107	4.0	58	355	475	DN200	11200	6000×2350×2500
AGCD-400/4.0-C-G	102.60	3622	4.0	58	400	533	DN250	11900	6000×2350×2500
AGCD-30/5.0-C-G	6.94	245	5.0	73	30	40	DN50	2100	2000×1450×1650
AGCD-37/5.0-C-G	9.39	331	5.0	73	37	50	DN50	2150	2000×1450×1650
AGCD-45/5.0-C-G	10.30	364	5.0	73	45	60	DN65	2350	2200×1450×1650
AGCD-55/5.0-C-G	12.17	430	5.0	73	55	75	DN65	3500	2420×1530×1720
AGCD-75/5.0-C-G	15.32	541	5.0	73	75	100	DN65	3750	2420×1530×1720
AGCD-90/5.0-C-G	22.42	791	5.0	73	90	120	DN80	3800	2800×1700×1950
AGCD-110/5.0-C-G	27.44	969	5.0	73	110	150	DN80	4200	2820×1730×2100
AGCD-132/5.0-C-G	31.25	1103	5.0	73	132	180	DN100	5000	2820×1730×2100
AGCD-160/5.0-C-G	41.20	1454	5.0	73	160	215	DN100	5900	3450×2000×2050
AGCD-185/5.0-C-G	44.34	1565	5.0	73	185	247	DN150	6850	3800×2250×2350
AGCD-200/5.0-C-G	45.78	1616	5.0	73	200	250	DN150	7800	3800×2250×2350
AGCD-220/5.0-C-G	50.46	1781	5.0	73	220	293	DN150	8000	3800×2250×2350
AGCD-250/5.0-C-G	61.90	2185	5.0	73	250	335	DN150	8250	3800×2250×2350
AGCD-280/5.0-C-G	71.07	2509	5.0	73	280	375	DN200	8900	4200×2250×2350
AGCD-315/5.0-C-G	81.00	2859	5.0	73	315	535	DN200	10400	5000×2250×2350
AGCD-355/5.0-C-G	87.55	3091	5.0	73	355	473	DN200	11200	6000×2350×2500
AGCD-400/5.0-C-G	102.20	3608	5.0	73	400	535	DN250	11900	6000×2350×2500

Note:

1.The above parameters and color are designed according to customer needs, the parametersare for reference only, thefinal parameters ofthe drawings shall prevail;

2.According to user requirements and needs, to join way: air/water cooling, weight,appearance size according to the need to design, to thefinal order and the technicalagreement shall prevail;

3.The company to change the above parameters subjectto change, without prior notice

4.2 years warranty for compressor, 5 years warranty for air end;

5. ISO, CE,TUV, GA, SGS certificates.
